Choosing a GPS vehicle tracker often comes down to one practical decision: do you want a tracker that plugs into the vehicle’s OBD-II port, or one that is wired into the vehicle?

Both types can provide live location tracking, journey history, geofence alerts and movement notifications. The main differences are how they are installed, how discreet they are and how easily they can be moved between vehicles.

This guide explains the options and helps you choose the right Global Trackers model for your car, van, motorhome, caravan or business vehicle.

The quick answer

Choose an OBD tracker if you want the quickest installation with no wiring. The GTOBD plugs directly into a compatible OBD-II port and can be removed or transferred easily.

Choose a hardwired tracker if you want a more discreet, permanent installation. The GT1, GT2 and GT3 provide different levels of installation simplicity, protection and connection flexibility.

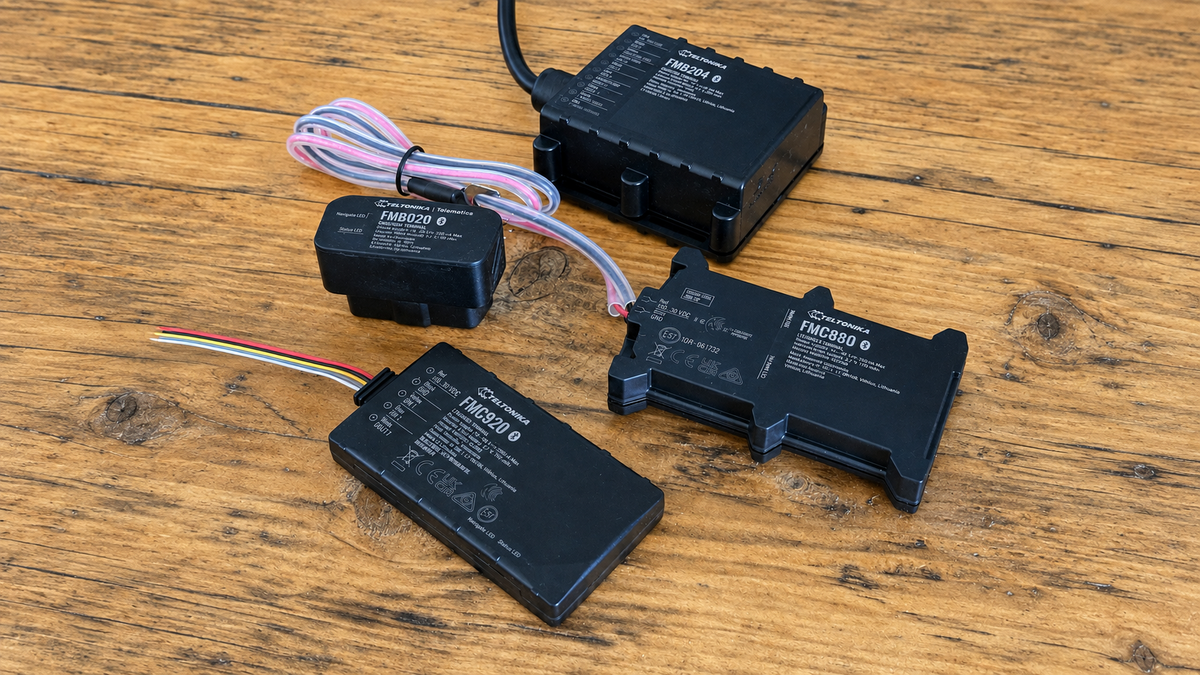

OBD and hardwired trackers compared

What is an OBD GPS tracker?

An OBD tracker receives power through the vehicle’s OBD-II diagnostic port. On compatible vehicles, installation is simply a matter of locating the port and plugging the tracker into it.

The GTOBD GPS Vehicle Tracker is the simplest option in the Global Trackers range. It requires no hardwiring and makes no permanent change to the vehicle’s electrical system.

It is a good choice when:

• You want to start tracking without arranging installation.
• You may need to move the tracker to another compatible vehicle.
• You do not want to connect power wires.
• Your vehicle has a suitable OBD-II port.

An OBD-II port is designed to be accessible for vehicle diagnostics, usually within reach of the driver’s area. That accessibility makes installation convenient, but it also means a plug-in tracker is easier to find and disconnect than a properly concealed hardwired tracker. The diagnostic port also remains occupied while the device is connected.

Before choosing an OBD tracker, check that your vehicle has a compatible port and that the installed device will not obstruct the driver, vehicle controls, trim panels or access requirements. If concealment and resistance to quick removal are priorities, choose a discreet hardwired installation instead.

What is a hardwired GPS tracker?

A hardwired tracker connects to a suitable permanent live supply and ground within the vehicle. It can be positioned discreetly and is intended to remain with the vehicle.

Hardwired trackers are a good choice when:

• You want the tracker concealed as part of a discreet, permanent installation.
• You do not need to move the tracker regularly.
• The vehicle does not have a suitable OBD-II port.
• You want to leave the diagnostic port available.
• You want installation options beyond a simple plug-in connection.

Hardwiring takes more effort at the beginning, but that is often the reason for choosing it: the tracker becomes a fixed part of the vehicle rather than an accessible plug-in device. This can be preferable for long-term ownership, working vehicles and fleet installations.

Global Trackers offers three hardwired models.

GT1: the discreet, flexible option

The GT1 GPS Vehicle Tracker is the most flexible option for a discreet installation. Its compact size allows it to be concealed wherever a suitable permanent live supply and ground are available, such as behind the radio or within the headlining, depending on the vehicle and installation.

For basic tracking, the GT1 only needs its red permanent-live and black ground connections. Its additional wires support optional functions such as ignition detection and correctly installed remote immobilisation.

Choose the GT1 when concealment and flexible positioning are the priorities.

GT2: simple two-wire battery installation

The GT2 GPS Vehicle Tracker mounts directly to the vehicle battery and requires two connections: red positive and black negative. Its compact, water-resistant design makes it particularly suitable for straightforward engine-bay installation.

Choose the GT2 when you want the simplest hardwired installation directly at the vehicle battery.

GT3: protected for more demanding installations

The GT3 GPS Vehicle Tracker is an IP67-rated hardwired tracker designed for installations where greater protection from water and dust is important. It also includes a larger 1,800 mAh internal backup battery that can keep it operating temporarily if the main power supply is interrupted.

For basic tracking, the GT3 can also be installed using only its red permanent-live and black ground connections. It supports additional inputs, outputs and accessories when more advanced functions are required.

Professional installation is recommended when using those advanced connections or its remote-immobilisation capability.

Choose the GT3 for more demanding environments or when you need its added protection, backup power and installation flexibility.

Which tracker should I choose?

I want the easiest possible installation

Choose the GTOBD if your vehicle has a suitable OBD-II port. It plugs in without hardwiring.

I want the most discreet and flexible installation

Choose the GT1. Its compact size means it can be concealed wherever a suitable permanent live supply and ground are available.

I want the simplest hardwired battery installation

Choose the GT2. It mounts directly to the vehicle battery using its red positive and black negative connections.

I need additional environmental protection and backup power

Choose the GT3. Its IP67-rated housing and larger internal backup battery suit more demanding installations.

I am still unsure

Contact Global Trackers before ordering. Tell us what vehicle you have, where you plan to install the tracker and whether you prefer plug-in, self-installation or professional fitting.

Do hardwired trackers need professional installation?

That depends on the vehicle, the chosen installation location and the connections you want to use.

GT1, GT2 and GT3 can all provide basic tracking using only their red power and black ground cables. The GT1 can be concealed wherever a suitable permanent live supply and ground are available. The GT2 is designed for a straightforward connection at the vehicle battery. The GT3 can also use a basic two-wire connection when its advanced inputs and outputs are not required.

Customers who are not confident working with vehicle electrics should ask a competent auto electrician to install the tracker. Professional installation is recommended for additional connections and features such as remote immobilisation. Any tracker must be installed safely, securely and in accordance with the vehicle manufacturer’s requirements.

Do all four trackers use the same tracking service?

Yes. GT1, GT2, GT3 and GTOBD connect to the Global Trackers platform and include a professionally configured multi-network M2M SIM.

The tracking subscription is £5.99 per month and includes tracking data, UK and European coverage, access through the app and online platform, and UK-based email support.

Available functions include live vehicle location, journey history, geofences, movement alerts and access from a smartphone, tablet or computer. Some device-specific functions depend on the tracker and how it is installed.

Ready to choose?

Compare the full Global Trackers vehicle tracker range, or contact us if you would like help selecting the most appropriate installation for your vehicle.
